Smarthon IoT:bit

Price range: USD33.60 through USD38.50

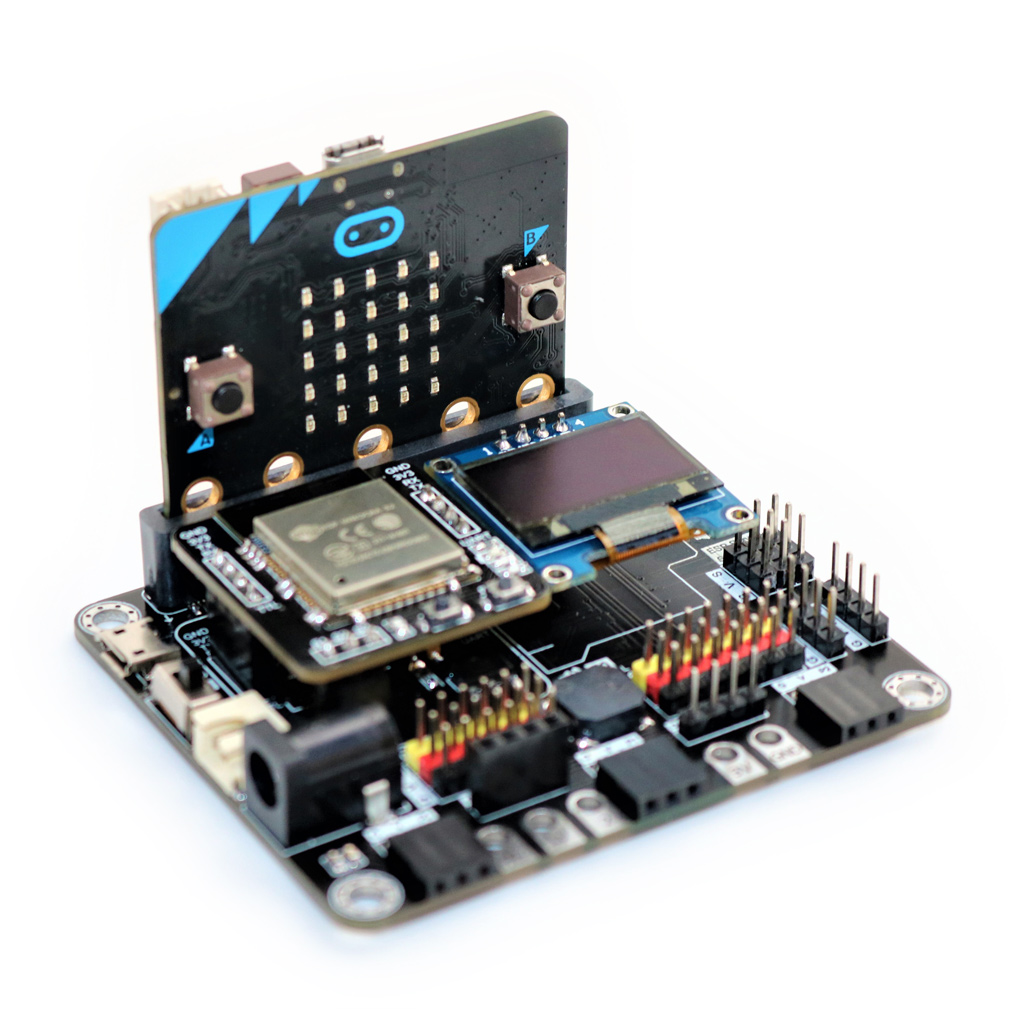

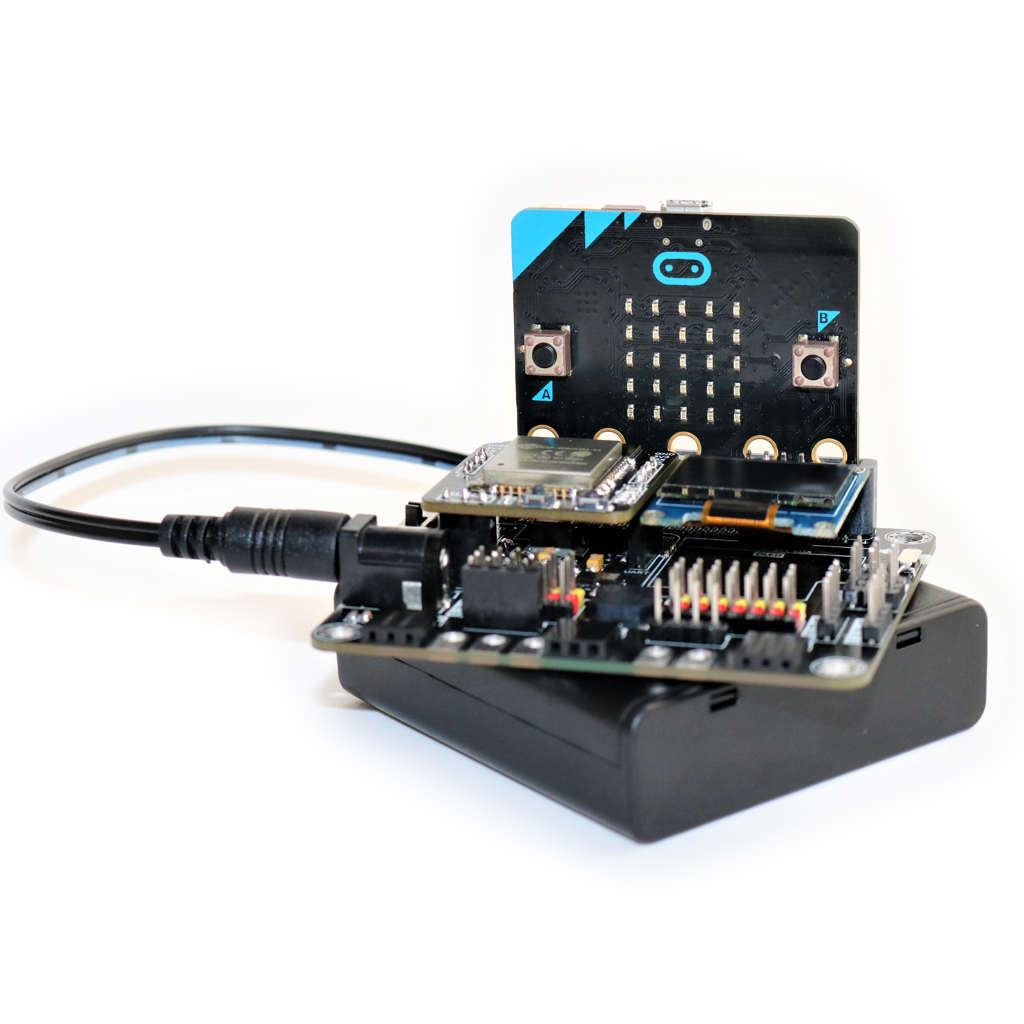

Smarthon IoT Bit is an IoT orientated expansion board for Micro:bit. With the help of this, Micro:bit able to connect to different sensors or actuators without welding and start to use the internet services.

Type

Clear

Qty

We offer discounts for bulk orders. Please click the button below and provide us with your order details.

SKU SS-M003-01 Category Modules

Description

Additional information

Type	Smarthon loT:bit (Individual Board), Smarthon iot:bit Starter Go Kit

Product Specification

Product Feature:

The Most powerful IoT chip ESP32 embedded for micro:bit
Exchangeable wireless modular design (ESP8266, ESP32, BLE)
Integrated OLED and Onboard buzzer embedded
Extended I/O port x13, I2C port x2 from mirco:bit with GVS socket
Extended Servo port x3 from ESP module
Various types of power supply (USB, 3.7V lithium battery, 6V Normal battery)
Extra Port: Crocodile Pin, Quick Access Port and 4-Pin Port for different usage

Product Size:

Size: 75mm X 65mm X 20mm
Power supply: USB:5VLithium Battery : 3.7~ 4.2VAA Battery*4:6V
Operation Temperature: 0 to 80°C

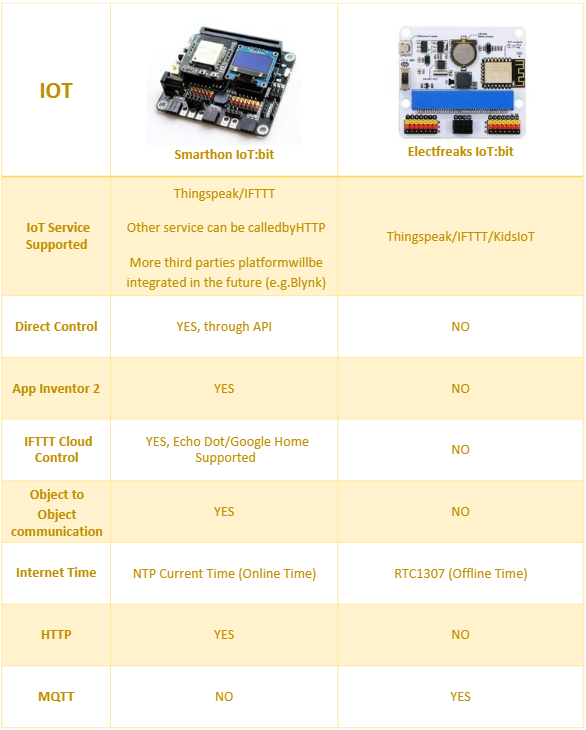

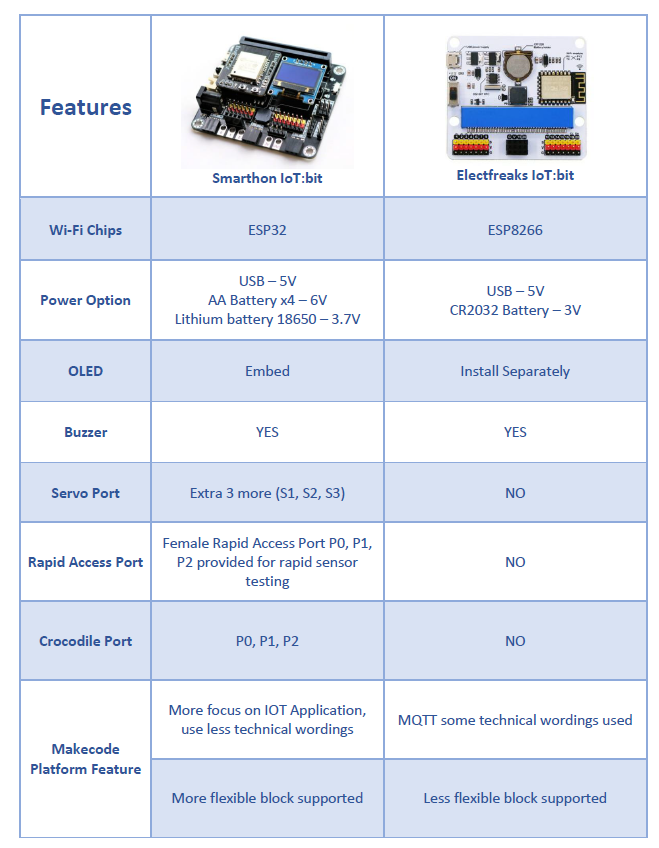

Product Comparison
